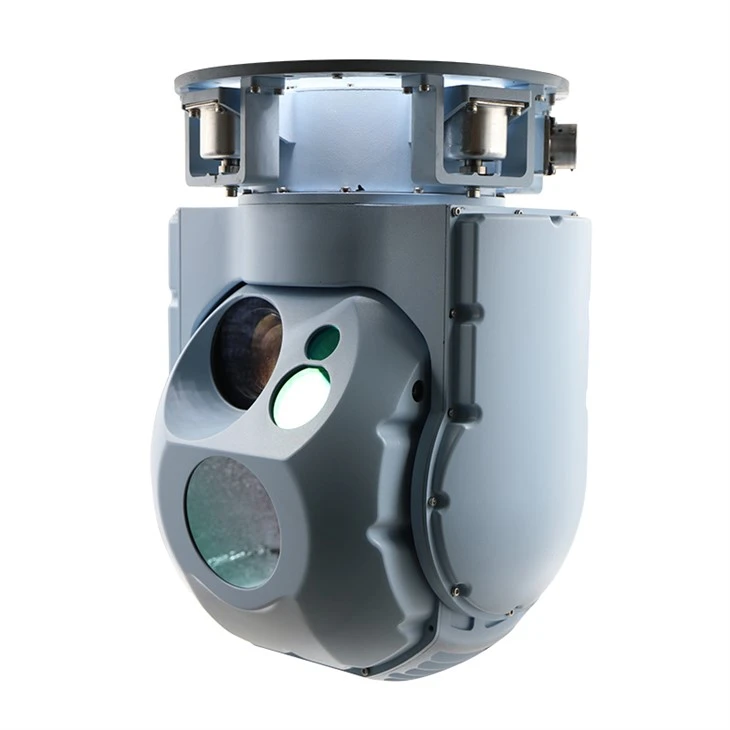

Ruggedized EO/IR System
Custom Ruggedized EO/IR system Manufacturer
Military-Grade Environmental Resistance:
Meets MIL-STD-810H for temperature, vibration, and shock; IP69K rating enables resistance to high-pressure water jets and IP67 for full submersion (1m, 30 mins), suitable for amphibious operations.
Reinforced Structural Durability:
Shock-absorbing silicone gaskets isolate internal components from impact; anti-corrosion coating on connectors prevents rust in saltwater environments, extending service life by 50% vs. standard models.
All-Weather Imaging Continuity:
Anti-fog optical coating and heated lens prevent condensation; MWIR sensor (3–5 μm) cuts through dust, smoke, and haze, ensuring no imaging interruption in severe weather.
Low-Maintenance Field Adaptability:
Sealed modular design reduces dust/moisture ingress; tool-free access to replaceable filters and batteries enables on-site maintenance in 10 mins, minimizing downtime.
Product Specifications
| Parameter Category | Index Item | Specific Parameter Requirements |
|
|
Azimuth | ≥60°/s |
| Pitch | ≥60°/s | |
Maximum Angular Acceleration of Rotation |
Azimuth | ≥100°/s² |
| Pitch | ≥60°/s² | |
| Rotation Range | Azimuth | 360° continuous rotation, left as negative and right as positive |
| Angle Reporting Accuracy & Resolution | / | Resolution: ≤1 mrad (milliradian) |
| Stable Accuracy | / | ≤0.1 mrad (milliradian) |
Working Principles
Huirui is a professional customized EO IR systems manufacturer
Reinforced Chassis Isolation
Dual-layer aluminum alloy frame with internal shock absorbers creates a "floating" structure, buffering external vibration and impact to protect precision sensors.
Environmental Adaptive Sensing
Built-in temperature/humidity sensors trigger adaptive adjustments-heated lens activates at low temps, while pressure equalization valves balance internal/external air pressure at high altitudes
Sealed Opto-Mechanical Integration
Optical path and electronic components are encapsulated in a single sealed unit; O-ring gaskets with IP69K rating block water, dust, and chemical contaminants from entering critical areas.
Stabilized Power & Data Transmission
Surge-protected power supply resists voltage fluctuations; shielded cables with military-grade connectors ensure stable data transfer even in electromagnetic interference (EMI) environments.
Technical Advantages
●Wide Temperature Range Sensor Tech:
EO/IR sensors are calibrated for -40°C to 70°C operation; low-noise circuitry maintains imaging quality without performance degradation in extreme thermal conditions.
●Impact-Resistant Optical Components:
Sapphire glass lens (9 Mohs hardness) resists scratches and shattering; optical coatings are bonded via military-grade adhesion to prevent peeling under harsh use.
●EMI Shielding & Signal Integrity:
Conductive coating on chassis blocks electromagnetic interference; twisted-pair data lines with shielding layers ensure imaging signals remain clear in radar-dense environments.
●Corrosion-Resistant Material Science:
Marine-grade 6061-T6 aluminum chassis with powder-coat finish; gold-plated connectors resist saltwater corrosion, ideal for naval and coastal ISR missions.
FAQ
Q: Does the system meet specific military standards for ruggedization?
A: Yes, it fully complies with MIL-STD-810H (environmental engineering) and MIL-STD-461G (EMI/EMC). It also holds IP67/IP69K ratings, validated for military, law enforcement, and industrial harsh-environment use.
Q: What's the maximum vibration and shock it can withstand?
A: It handles 20G peak shock (11 ms duration) and 10–2000 Hz random vibration (14.1 Grms), exceeding the requirements for mounted use on tactical vehicles, helicopters, and small boats.
Q: How often does maintenance require, especially in field conditions?
A: Routine maintenance is only quarterly (filter replacement); the sealed design allows 2,000 hours of continuous operation without servicing. On-site repairs use common tools, with critical parts replaceable in under 15 mins.
Q: Can it operate normally in saltwater or chemical exposure environments?
A: Absolutely. The corrosion-resistant chassis and gold-plated connectors withstand salt spray (per ASTM B117) and exposure to common battlefield chemicals, making it suitable for naval and desert missions.
Q: Is the ruggedized design increasing the system's weight significantly?
A: Minimal weight impact-only 12% heavier than standard models (2.1 kg vs. 1.9 kg). The optimized material selection (high-strength aluminum) balances durability and portability for man-portable applications.
Q: Do you offer customization for specific ruggedness requirements?
A: Yes. We provide tailored solutions-such as extended temperature range (-55°C to 85°C) or enhanced shock resistance (30G)-with 8–12 weeks lead time and full compliance testing before delivery.
