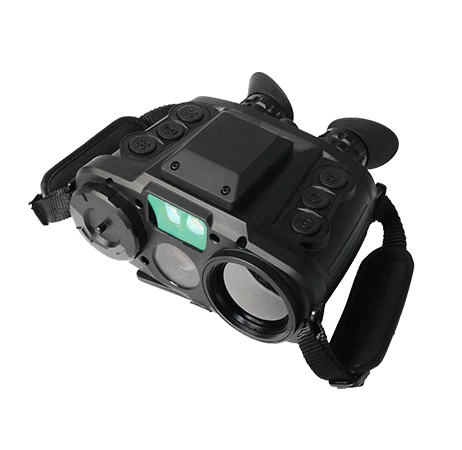

Hand Held Thermal Imager
Our Hand Held Thermal Imager stands as a testament to quality, offering numerous advantages across a range of applications. With precision engineering and advanced technology, this device is designed to meet the needs of various industries.The thermal imager provides accurate temperature readings, making it invaluable in applications such as predictive maintenance, electrical inspections, and building diagnostics.
Advantages
User-Friendly Interface: With an intuitive user interface, the imager is easy to operate, and it allows for quick analysis and reporting of thermal data.
Portability: Its hand held design ensures portability, allowing users to navigate and inspect various areas and equipment effortlessly.
Wide Temperature Range: The imager can capture a broad range of temperatures, making it adaptable for both high-temperature industrial applications and low-temperature environments.
Non-Invasive Inspection: The non-contact nature of thermal imaging ensures safe and non-invasive inspections without disrupting operations.
Specification
| Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) | |||
| Detection Range | ckm | >9.2 km | ||
| RecognitionRange | akm | >6km | ||
| Spectral Response | 3~5μm | |||
| NETD | ≤25mK | @F1.0,300K | ||
| MRTD | ≤0.2k | |||
| Frame rate | 50Hz | |||
| Focus | 30mm~240mm continues zoom F#4 | |||
| FOV | 18.20 × 14.6o to 2.3*1.8 | |||
| Imaging Control | White/Black/ Polarity,Auto/Manual Gain, NUC | |||
| SSensor Type | 1/2'Sony IMX385LQR-C CMOS Sensor | |||
| Resolution | 1920x1080 | |||
| Angle of View(D,H,V) |
Wide | 63.31 | 56.5 | 33.63 |
| tele | 2.44 | 2.12 | 1.19 | |
| S/N Ratio | More than 50dB | |||
| Display Type | 0.6"Color OLED screen | |||
| Oled Resolution | 1024x768 | |||
| Reticles Luminance | Customized | |||
| GPS Accuracy | ±5m | |||
| DMC Typ | Digital Compas | |||
| Eye Safety | Class 1,eye-safe | |||
| Min. Distance | 50m | |||
| Max. Distance | 10km | |||
| Distance measurement accuracy(m) | 50~1500m:±1m 1500~5000m:±3m | |||
| Vehicle-size NATO target,2.3 x2.3m | 7km | |||
| Human-size NATO target,1.0mx1.0m | 5km | |||
| Frequency | 0.5~10Hz | |||
| Accuracy | ±10m(<1km),±20m(1km~10km) | |||
| Video out | VGA/PAL | |||
| External Power | DC12V adapter, yoltage input range 12V~32V | |||
| Drop Test | 1.5m | |||
| Weight | 2.6kg (without battery | |||
Applications:
Our Hand-Held Thermal Imager finds application in diverse fields, including:
Building Inspections: Identify heat loss, moisture issues, and electrical faults in structures.
Industrial Maintenance: Monitor machinery, detect overheating components, and prevent equipment breakdowns.
Firefighting: Locate hotspots, assess fire scenes, and enhance safety in emergency situations.
HVAC Systems: Optimize heating, ventilation, and air conditioning systems for energy efficiency.
Search and Rescue: Locate individuals in low-visibility conditions, such as darkness or smoke.
In summary, our Hand-Held Thermal Imager is a high-quality, portable, and versatile tool with wide-ranging applications. Its precision, durability, and ease of use make it an asset in numerous industries, ensuring efficient and accurate thermal imaging for your specific needs.
Outdoor Activities:
Security and Surveillance:
