Products
Heat Imaging Binoculars
Introducing our state-of-the-art heat imaging binoculars, a revolutionary tool that offers unmatched capabilities for various applications. These binoculars combine advanced thermal imaging technology with the convenience and portability of binoculars, providing users with unprecedented visibility in low-light conditions and adverse environments.One of the key advantages of our heat imaging binoculars is their exceptional image quality and clarity. Equipped with high-resolution thermal sensors and advanced image processing algorithms, these binoculars deliver sharp, detailed images with excellent contrast and accuracy. Whether scanning vast landscapes or tracking moving targets, users can rely on these binoculars to provide clear and reliable thermal imagery in real-time.Moreover, our imaging binoculars are designed for ruggedness and durability, making them suitable for use in harsh environments and challenging conditions. Built to withstand water, dust, and extreme temperatures, these binoculars ensure reliable performance in any situation. Additionally, they feature ergonomic designs and intuitive controls for ease of use and comfort during extended periods of operation.Safety is paramount, and our heat imaging binoculars incorporate various features to enhance user safety and security. With their long-range detection capabilities, users can maintain safe distances from potential hazards or threats while conducting surveillance or reconnaissance missions. Furthermore, the ability to detect heat signatures through obstacles such as foliage or smoke provides an added layer of situational awareness, allowing users to navigate hazardous environments more effectively.

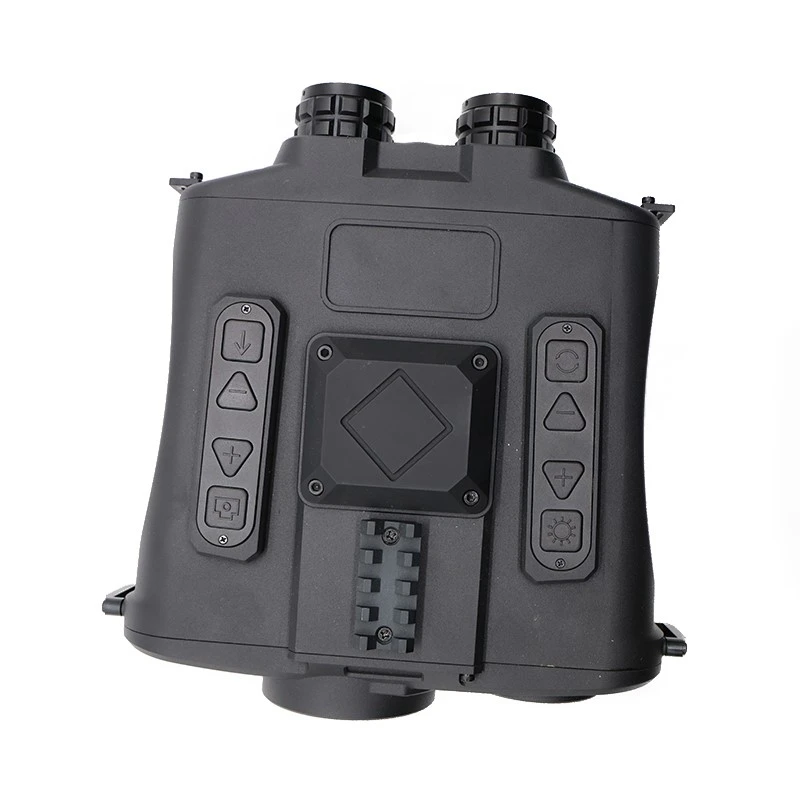

Product Image
Specification
| Item | Main technica l data | Remark | |
| Infrared lens | Focus | 50mm/75mm | |
| Fov | 12.4°×7°/8.3°×6.6° | ||
| Infrared sensors | Detector type | Vox | |
| Resolutions | 640×512/384×288(12um) | ||
| Wave | 8-14μm | ||
| NETD | ≤35Mk | @F1.0,300K | |
| Frequency | 50Hz | ||
| Signal to noise ratio | 56DB | ||
| Non-uniformity correc t ion | Manual/Auto | ||
| Image Processing | DDE | ||
| Zoom | 1~8X | ||
| Low light lens | Focus | 35mm | |
| Fov | 12.4°×7°/8.7°×5° | ||
| Sensor type | CMOS sensor | ||
| Low light detector | type | 6um | |
| Pixels | 1280x720 | ||
| Dynamic Range | 76DB | ||
| Frequency | 50Hz | ||
| LRF | Laser type | A semiconductor laser | |
| Laser wave | 1550nm | ||
| Detect range | 10m-4km | ||
| Accuracy | ±1m | ||
| Precision rate | ≥98% | ||
| Compass | Compa s s | Azimuth accuracy 1 °P i tch angle accuracy 1° | |
| Image display | Mode | OLED HD binocular display | |
| Resolution | 1024×768 | ||
| Colors | White heat/black heat/low light/fusion picture-in-picture display / fusion color /fusion gray /fusion black and white |
||
| Storage | Built-in storage | 32G | |
| Video format | AVI | ||
| Physical characteristics |
Continuous working time | 5 hours | |
| Total weight | 1.3kg(without battery) | ||
| Size | 182.5mmX180.2mmX82.8mm(LxWxH) Contains eye mask | ||
| Interface | Power in | DC12V | |
| Video output | PAL | ||
| Data interface | USB2.0 | ||
| Control interface | RS232 | Can use RS232 to control all functions of Device |
|
| Environmenl indicators |
Work Temperature | -40℃+60℃ | |
| Storage temperature | -50℃+70℃ | ||
| humidity | ≤90% | ||
| Seal | IP67 | ||
| Optional Function | GPS WIFI | ||
Applications:
Outdoor Activities:
Security and Surveillance:
For deer observation:
For bird observation:
FAQ
Q: What makes military thermal binoculars different from standard binoculars?
A: Military thermal binoculars differ significantly from standard binoculars by integrating advanced thermal imaging technology. They utilize infrared sensors to detect heat signatures, allowing users to see in complete darkness, adverse weather conditions, and low-visibility situations. This capability provides a critical advantage in military operations, enhancing situational awareness and mission success.
Q: How do military thermal binoculars contribute to tactical operations?
A: Military thermal binoculars play a pivotal role in tactical operations by offering enhanced reconnaissance and surveillance capabilities. The ability to detect heat signatures allows military personnel to identify potential threats, track movement in various terrains, and conduct covert operations during the night. This technology is crucial for maintaining a tactical edge and ensuring the safety of military personnel in the field.
Q: In what scenarios are military thermal binoculars particularly useful?
A: Military thermal binoculars are exceptionally useful in a range of scenarios. These include nighttime operations, border patrolling, search and rescue missions, and monitoring large areas with limited visibility. The binoculars excel in detecting hidden or camouflaged targets, providing a distinct advantage in both defensive and offensive military strategies. Their versatility makes them indispensable tools for modern military forces across various operational contexts.
